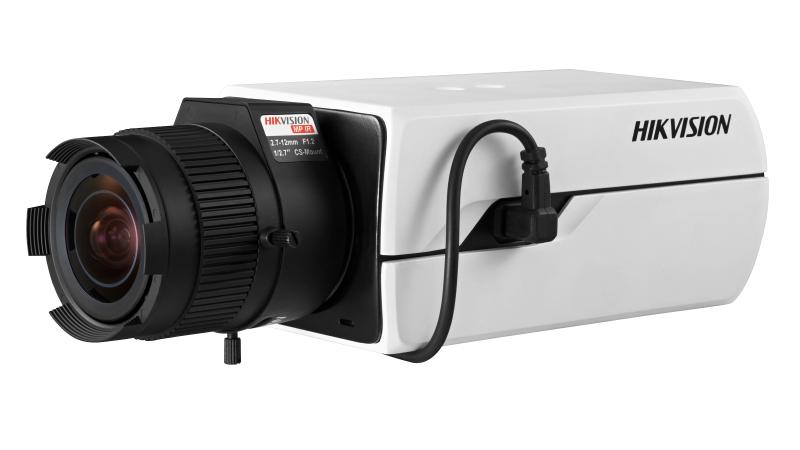

DS-2CD4C26FWD(-AP)

Image Sensor
1/1.8” Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed
1 s – 1/100,000 s, supports slow shutter
Day &Night
IR cut filter with auto switch
Wide Dynamic Range
120dB
DNR
3D DNR
Lens
Auto-Iris
DC drive,With –P model: P-iris
Focus
With –A model: supports ABF(auto back focus)
Lens Mount
C/CS mount
Video
Max. Resolution
1920 × 1080
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps – 16 Mbps
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise Filtering
Support
Audio Sampling Rate
Max. 48 kHz
Smart Feature-Set
Behavior Analysis
Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Region of Interest
Support 4 fixed region for each stream, and dynamic face tracking
Image Enhancement
BLC/3D DNR/Defog/EIS/HLC
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping
Support
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream Max. Frame Rate
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Alarm Trigger
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
4G
Standard
ONVIF (PROFILE S, PROFILE G), ISAPI
Interface
Communication Interface
1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
Audio
support；1-ch 3.5mm audio input(line in/mic in), 1-ch 3.5mm audio output,1 build-in microphone(can be turned off)
Alarm
1 input, 1 output (up to DC 24V, 1A or AC 110V, 500mA)
Video Output
1Vp-p composite output (75 Ω/BNC)
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Compression Standard
H.264+
Support
H.265+
Support
Smart Feature-set
Face Detection
Face Detection
Exception Detection
Scene Change Detection
Line Crossing Detection
Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion Detection
Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance Detection
Enter a pre-defined virtual region from the outside place
Region Exit Detection
Exit from a pre-defined virtual region
Object Removal Detection
Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
General
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Reset
Yes
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 24 VDC ± 25%, PoE (802.3af, class 3),Terminal block
Dimensions
Camera: 69.8 × 58 × 145 mm (2.75″ × 2.28″ × 5.71″),Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Weight
830 g (1.83 lbs)
Power Consumption and Current
12 VDC, 0.5 A, max. 6.0 W,24 VAC, 0.4 A, max. 6.0 W,PoE (802.3af, 36 V to 57 V), 0.1 A to 0.2 A, max. 7.6 W
