Image Sensor
1/1.8″ Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed
1 s to 1/30,000 s
Day & Night
IR cut filter
Zoom
32 × optical,16 × digital
Slow Shutter
Yes
Lens
Focal Length
6.5 to 208 mm
FOV
Horizontal field of view: 58.5° to 2.4°, vertical field of view: 35° to 1.4°, diagonal field of view: 65.3° to 2.8°
Focus
Auto, semi-auto, manual
Aperture
Max. F1.6
Zoom Speed
Approx. 6.2 s
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
0° to 90°
Pan Speed
Pan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
Tilt Speed
Tilt speed: configurable from 0° to 120°/s, preset speed 120°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memory
Yes
Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
PCM/MP2L2/G.722.1/AAC-LC/G.726/G.711/MP3
Audio Bit Rate
8~48 Kbps(PCM)/32~192 Kbps(MP2L2)/16 Kbps(G.722.1)/16~64 Kbps(AAC-LC)/16 Kbps(G.726)/64 Kbps(G.711ulaw/G.711alaw)/8~320 Kbps(MP3)
Audio Sampling Rate
48kHz/32kHz/16kHz/8kHz
Environment Noise Filtering
Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour,WebSocket,WebSockets
Simultaneous Live View
Up to 20 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS)
Client
iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser
IE11, Chrome57+, Firefox52+, Safari11+
Image Parameters Switch
Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
＞52 dB
Defog
Digital defog
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus
Yes
Regional Exposure
Yes
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 128 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm
1 alarm input, 1 alarm output
Reset
Yes
Event
Basic Event
Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection
Smart Event
Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,smart tracking,and PTZ actions (such as preset, patrol scan, pattern scan)
General
Power
12 VDC ± 25%, max. 18 W,PoE (802.3at)
Dimension

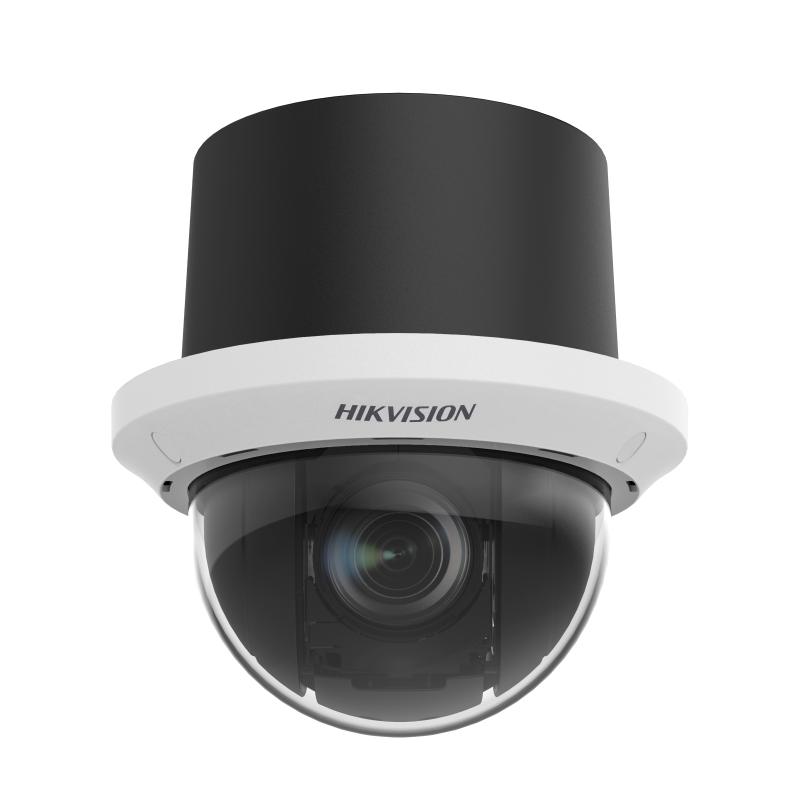

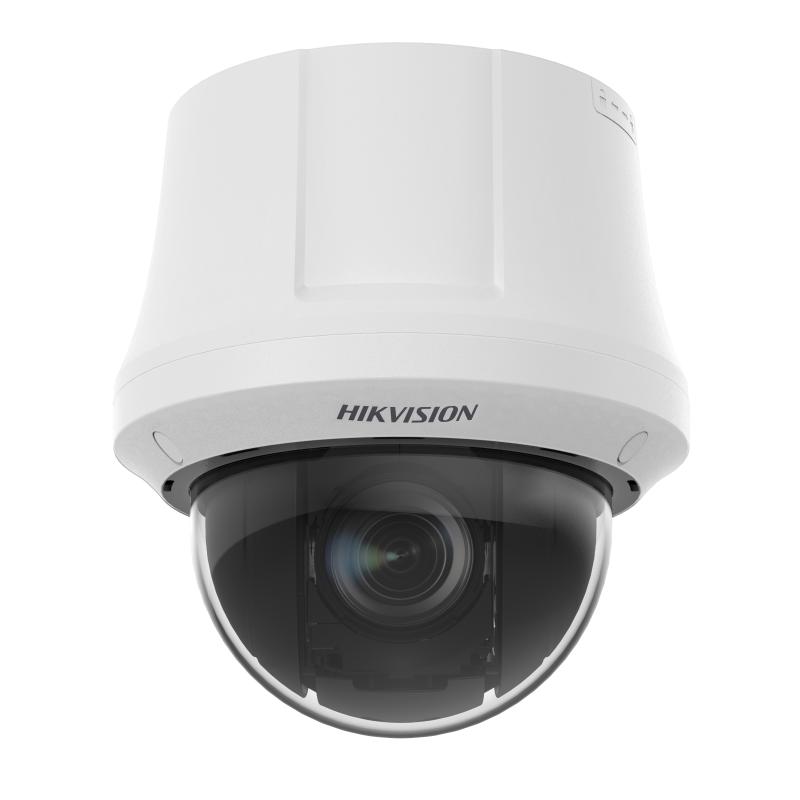

Ceiling mounting: Ø 165 mm × 179.5 mm (Ø 6.5″ × 7.1″),In-ceiling Mounting: Ø 165 mm × 168 mm (Ø 6.5″ ×6.61″)
Weight
Approx. 2 kg (4.41 lb.)
Material
ADC 12, PC+ABS, PC/PMMA
Operating Condition
-10 °C to 50 °C (-10 °F to 122 °F). Humidity 90% or less (non-condensing)
Approval
EMC
CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
Safety
CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1: 2014 + A11)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
IP54 (IEC 60529-2013)
