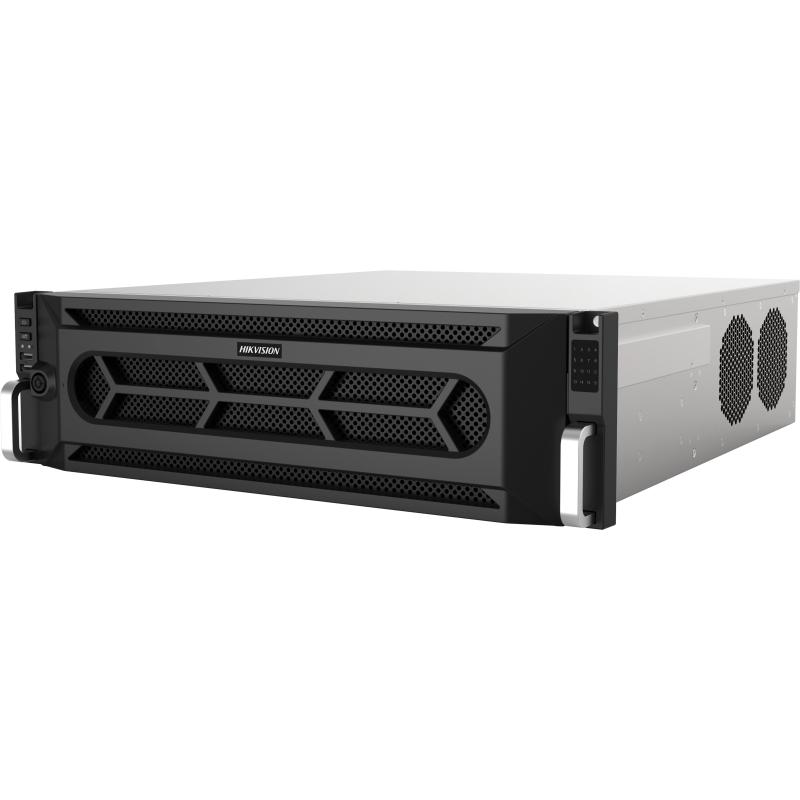

DS-9000AI-S16-D

System
Processor
Quad-Core Intel® Xeon® Processor E3 V5 Series
Memory
8GB DDR4. ECC parity. Extendable up to 64 GB
Operating system
Ubuntu Linux is installed by default. Microsoft Windows, including Windows 7E,,Windows 10, and Windows Server 2012 R2 can be installed
External interface
USB interface
Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
LAN
4 × RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial interface
1 ×RS-485 (full-duplex);1 × Keyboard;1 ×RS-232,
Two-way audio interface
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Alarm Input / Output
16/8
Storage
SATA interface
16 3.5-inch HDDs are connectable. Hot swapping
Capacity
Up to 10 TB for each HDD
eSATA
1 × eSATA interface ;2 × mini SAS interface (optional),
Server board
Video card
Intel® HD Graphics P530
System disk
Industrial-level SSD with 128 GB capacity
Video output
2 × HDMI interface with resolution up to 4K;,1 × VGA interface with resolution up to 1080p,HDMI 1 and VGA simultaneous output mode is enabled by default.
Audio input/output
2 × RCA interface. One for audio input and one for audio output
SATA interface
Four 2.5-inch HDDs are connectable
Storage board
Installation
Pluggable HDD tray. Hot swapping
RAID
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Processor
Dual-Core Intel Processor,
Operation system
Embedded Linux
IPC video input
128-ch
Incoming/outgoing bandwidth
576/512Mbps
TLS outgoing bandwidth
128 Mbps, or 64 Mbps (when RAID is enabled),
Decoding format
H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Video resolution
12MP/8MP/7MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/Q,CIF
Synchronous playback
16-ch
Capability
H.264, H.264+, H.265, and H.265+ stream: 20@1080p;,MPEG4 and MJPEG: 10@1080p
Other parameter
Working humidity
10% to 90% RH (no freezing and no condensation)
Storage temperature
-10 °C to +70 °C (+14 °F to +158 °F)
Storage humidity
5% to 90% RH (no freezing and no condensation)
Hardware
Structure
Pluggable HDD trays with no-cable design and dual-board structure (server board,and storage board) realize effective task and storage management.
Bezel
Frosted aluminum alloy bezel. Hot swapping
Multi-functional mounting ears
Integrates status indicators, functional buttons, USB interfaces, and handles.,Supports one-key muting
Fan
Redundant dual-ball bearing fan. Hot swapping and smart speed adjusting
Power supply
Redundant power supply module meets the Intel CRPS (Common Redundant,Power Supply) standard. 100 to 240 VAC, 550 W wide-range power input
Guide rail
External guide rail for installing device into a rack
Video/Audio output
HDMI interface
Two independent HDMI outputs, resolution: 4K (4096×2160), 4K,(3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080p (1920×1080)/60Hz, UXGA,(1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720p (1280×720)/60Hz, XGA,(1024×768)/60Hz
Audio output
1-ch, RCA (2.0 Vp-p, 1 KΩ)
VGA interface
1-ch, resolution: 1080p (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720p (1280x 720)/60Hz, XGA (1024×768)/60Hz
General
Consumption (without hard disk)
≤ 350 W
Working temperature
-10 °C to +70 °C (+14 °F to +158 °F)
Working humidity
5% to 90% RH (no freezing and no condensation)
Dimensions (W × D × H)
447 × 490 × 133 mm (17.6 × 19.3 × 5.2 inch)
Weight (without hard disk)
≤ 20 Kg (44.1 lb)
Chassis
3U chassis of thick galvanized steel,
