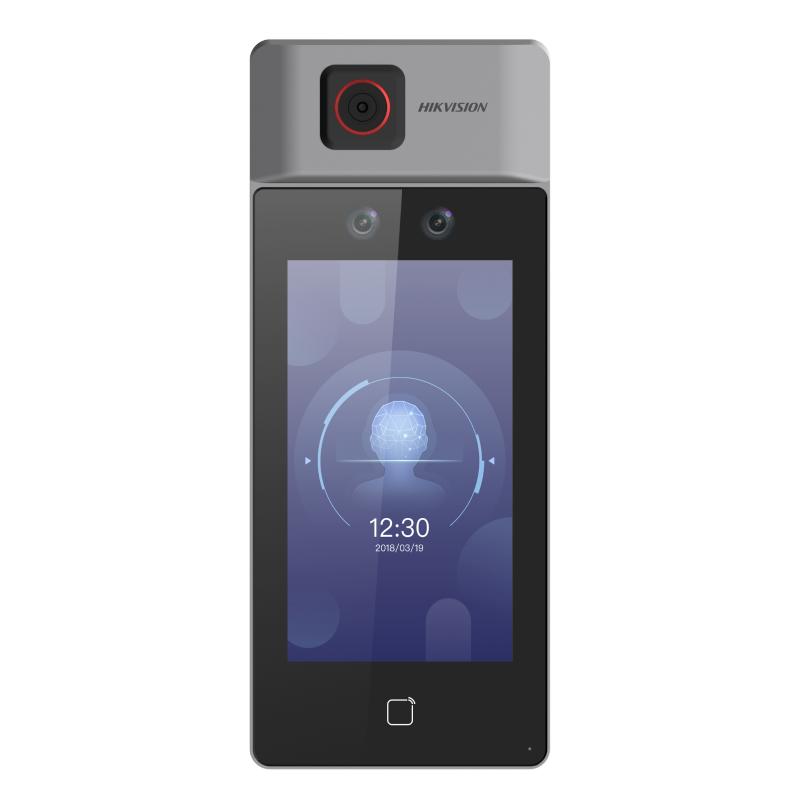

DS-K1T671TM-3XF
DS-K1T671TM-3XF - Image 2

DS-K1T671TM-3XF

Ultra Face Recognition Terminals

  • Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
  • Recognition distance: 0.3 to 2 m
  • Face mask detection
  • Displays temperature measurement results on the authentication page
  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Built-in Mifare card reading module
  • Face recognition duration ＜ 0.2 s/User
  • face recognition accuracy rate ≥ 99%
  • 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity

DS-K1T671TM-3XF-Face-Recognition-Terminal_Datasheet

  • System
  • Operating systemLinux
  • Temperature measurement
  • Temperature range30 °C to 45 °C (86 °F to 113 °F)
  • SensorVanadium Oxide uncooled sensor
  • Resolution120 × 160
  • Frame rate25 fps
  • Measurement accuracy0.1 °C
  • Measurement deviation± 0.5 °C, without black body calibration
  • Measuring distance0.3 to 2 m
  • Display
  • Screen size7-inch
  • Operation methodTouch screen
  • Video
  • LensDual-lens
  • Resolution2 MP
  • FOVHFOV= 46°；VFOV=87°
  • Network
  • Wired networkSupport, 10/100/1000 Mbps self-adaptive
  • Interface
  • Network interface1
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851
  • Wiegand1
  • USB2
  • Capacity
  • Face capacity50000
  • Card capacity50000
  • Event capacity100000
  • General
  • Power supply12 VDC/2 A
  • Working temperature

    0 °C to 50 °C (32 °F to 122 °F)

    For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)

  • Working humidity10 to 90% (No condensing)
  • Application environmentIndoor and windless environment use only
  • Function
  • Face anti-spoofingSupport
