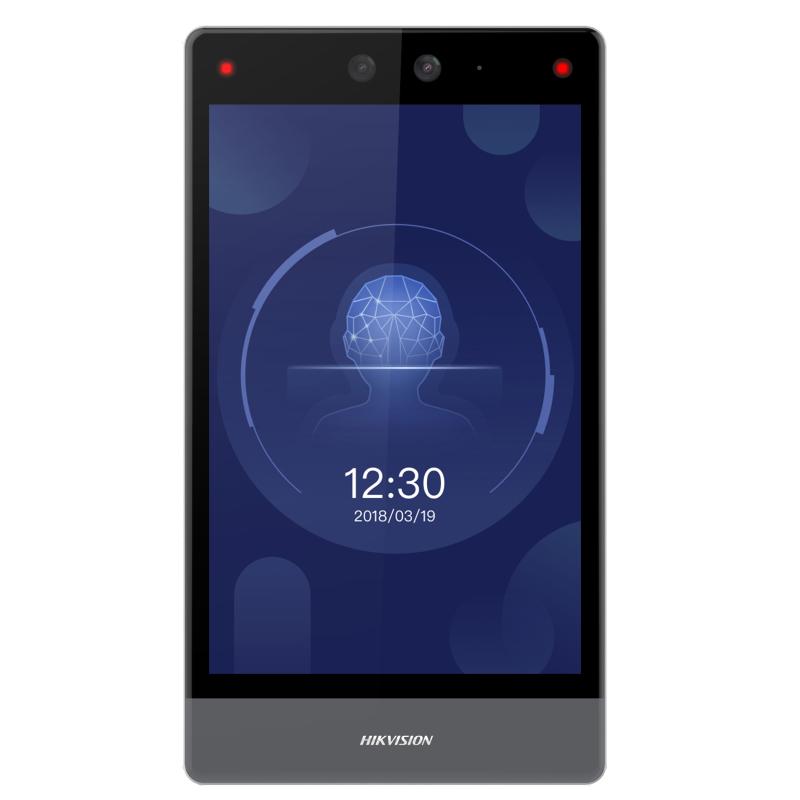

DS-K1T680DW

DS-K1T680DW

Ultra Series Wall-Mounted Face Access Terminal

  • 8-inch touch screen with bezel-less design
  • Presents card on the screen to authenticate
  • Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
  • 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi
  • Two-way audio with indoor station and main station
  • Configuration via the web client and mobile client
  • Customizes attendance status name

DS-K1T680DW_Datasheet

  • Display
  • Screen size8 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
  • Video
  • Lens2
  • Resolution2 MP
  • FOVHFOV = 88°; VFOV = 44°; DFOV =108°
  • Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • Alarm input2
  • Alarm output1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Authentication
  • Card typeM1 card;DESfire card;Felica card
  • General
  • Power supply12 VDC to 24 VDC, 3 A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Protective levelIP65
  • Dimensions127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” )
  • Function
  • Hik-ConnectSupport
  • LanguageEnglish, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
  • QR code recognitionSupport. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm.
  • Face anti-spoofingSupport
