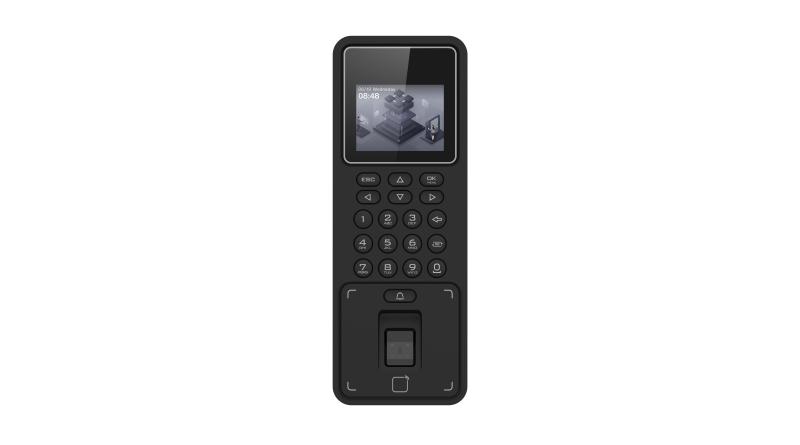

DS-K1T808EFWX-B

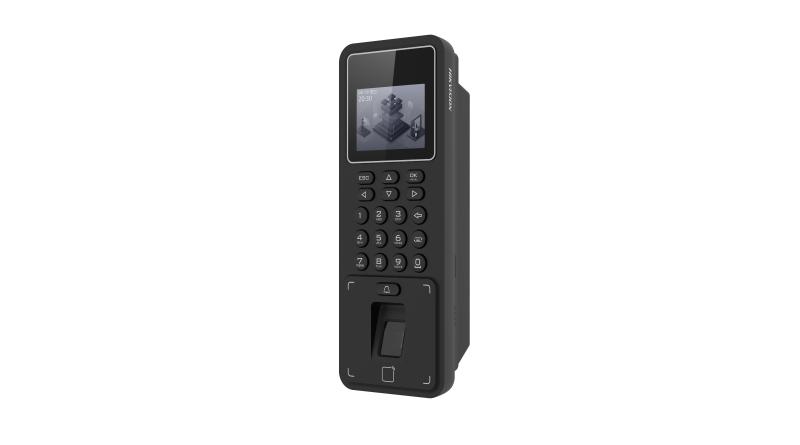

DS-K1T808EFWX-B - Image 2

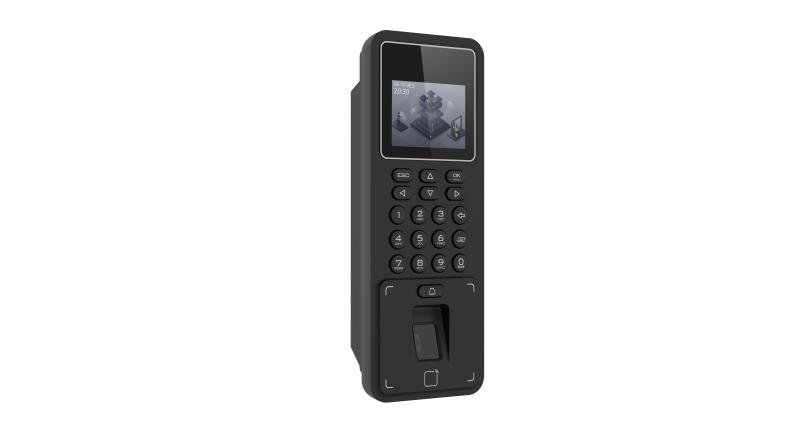

DS-K1T808EFWX-B - Image 3

DS-K1T808EFWX-B

Pro Fingerprint Terminals

  • 2.4-inch LCD screen
  • Multiple authentication methods, including fingerprint, card (EM card), and PIN, etc.
  • Max. 3000 cards, 3000 fingerprints and 100,000 events
  • Supports ISAPI and ISUP 5.0 protocols
  • Configuration via the PC web client and mobile web client
  • Supports wired network and Wi-Fi (AP mode)
  • Supports wiring with secure door control unit or card reader via RS-485
  • Supports power supply by battery in the bracket
  • Supports access control and local time and attendance function

DS-K1T808EFWX-B_Datasheet

  • System
  • Operating systemLinux
  • Display
  • Screen size2.4 inch
  • TypeLCD
  • Resolution320 × 240
  • Audio
  • Audio outputBuilt-in buzzer
  • Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • Network interface1 RJ-45, 10/100 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand (W26, W34)
  • USB1
  • Capacity
  • Fingerprint capacity3000
  • Card capacity3000
  • Event capacity100,000
  • Authentication
  • Card typeEM card
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • General
  • Power supply

    12 VDC

    Supports power supply by battery in the bracket

  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity0 to 90% (No condensing)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese
  • KeypadSupport
