- General
- Indicator
Green: Locked
Red: Unlocked
- Power supply
12 VDC/500 mA
24 VDC/250 mA
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity0 to 95% (relative Humidity)
- Dimensions
Lock body: 240 mm × 49 mm × 25.5 mm (9.45″ × 1.93\” × 1.00\”)
Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5\” × 0.4\”)”
- Weight2.1kg (4.63 lb)
- Material
Shell: hard Anodizing Electroplating Operated
Lock Body: eco-friendly Zinc with Electroplating Operated
Armature Plate: eco-friendly Zinc with Electroplating Operated
- ThrustMax. 272 kg (599.8 lb) linear thrust
- Door typeSingle leaf, double leaf, wooden door, glass door, metal door, fireproof door
- Signal outputDry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking

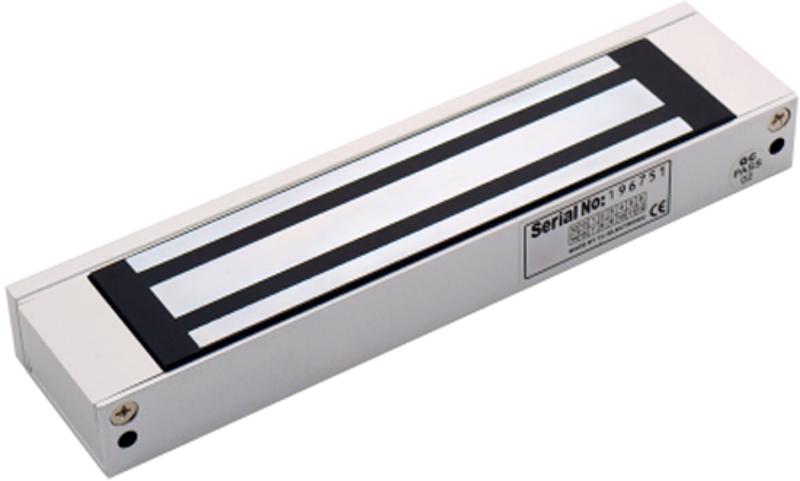

DS-K4H250S
Pro Series Magnetic Lock
- The magnetic lock supports static linear thrust of 272 kg (599.8 lbs)
- Power supply can be customized to be 12 VDC or 24 VDC, (default voltage is 12 VDC)
- Equipped with internal voltage dependent resistor (MOV)
- LED indicator displays door lock status
- Abrasion-proof materials
