DS-KAD7060EY

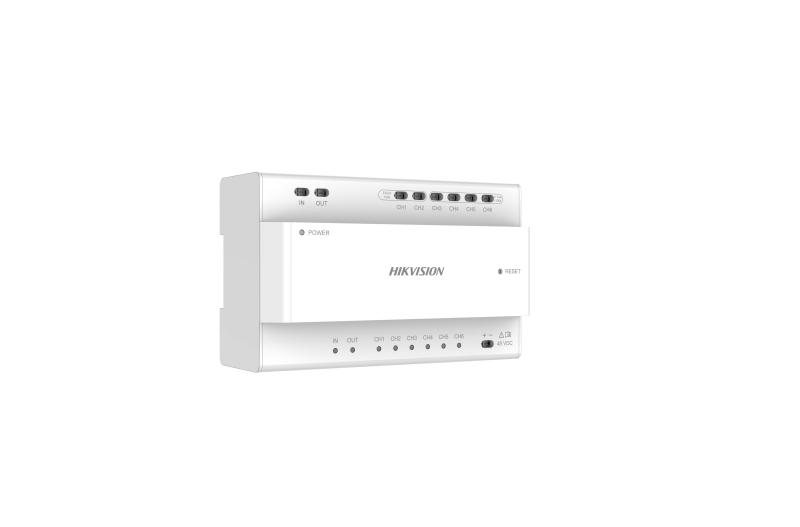

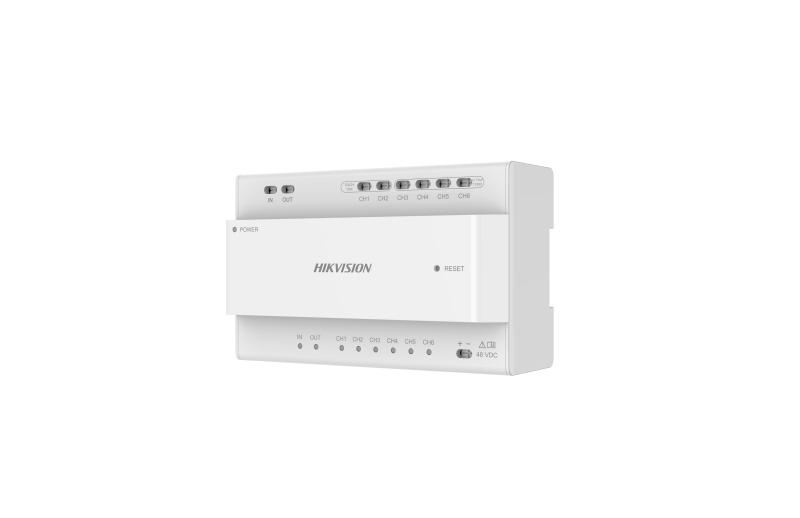

DS-KAD7060EY - Image 2

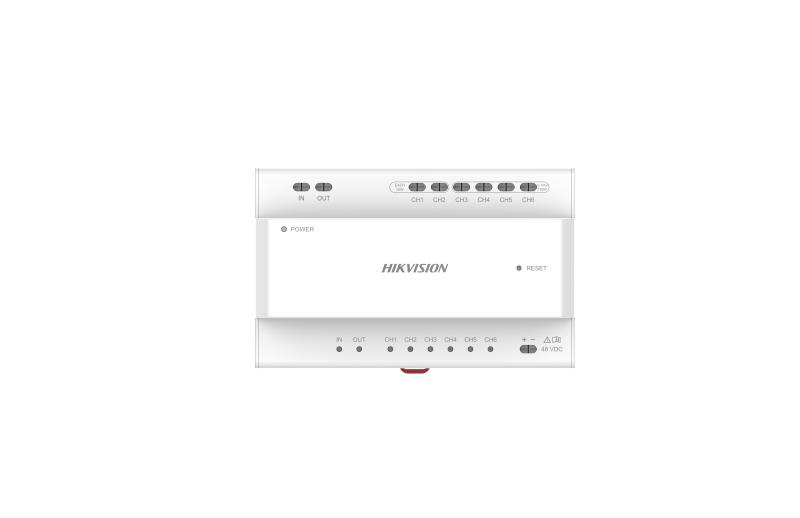

DS-KAD7060EY - Image 3

DS-KAD7060EY

2-wire HD Distributor

  • Excellent Product Design: 8 interface indicators show device status, 1 Reset button
  • Excellent Product Design: DIN rail installation
  • IN/ OUT: Support DS-KAD7060EY cascade, or connection to DS-KAD7060EY-S for network communication between multiple buildings
  • Support access to door stations, indoor stations and 7061 simultaneous transmission of power and network signals on 2 wires

DS-KAD7060EY-2-wire-HD-Distributor_Datasheet

  • Device interfaces
  • Two-wire interface8(“IN””OUT” for casacading, CH1-CH6 for Door station and Indoor station)
  • Power indicator1
  • Signal indicator8
  • Reset1
  • Power supply input48VDC
  • General
  • Power supply48 VDC
  • InstallationDIN rail installation
  • Power consumptionCH1 to CH2＜15 W；CH3+CH4+CH5+CH6＜110 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (W × H × D)143.7 mm × 92.4 mm × 65.9 mm (5.66″ × 3.64″ × 2.59″)
