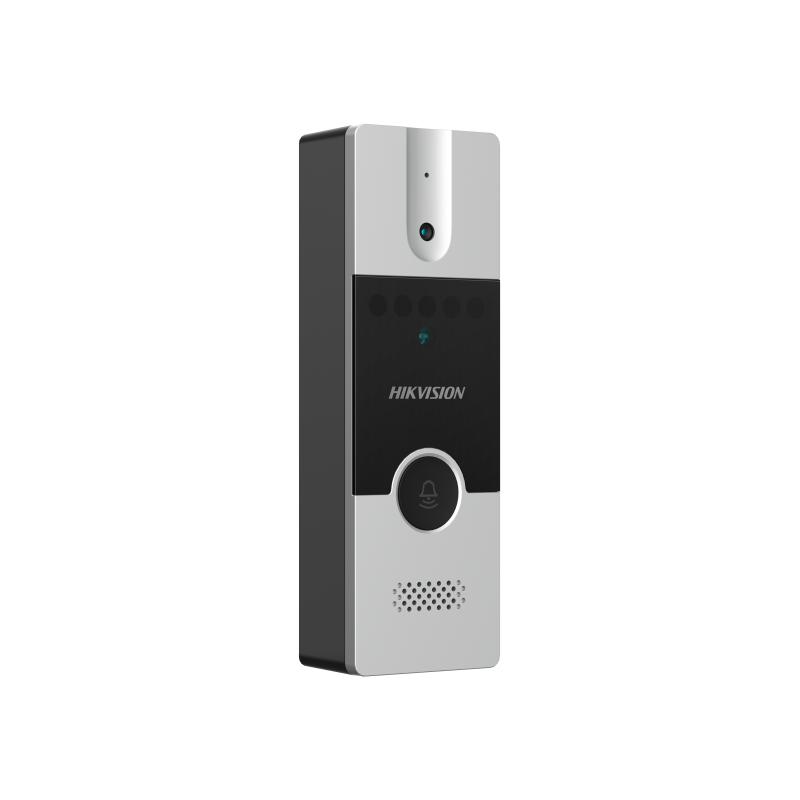

DS-KB2411T-IM
DS-KB2411T-IM - Image 2
DS-KB2411T-IM - Image 3

DS-KB2411T-IM

Analog Four Wire Door Station

  • 4-wire plug & play analog door station
  • 2 MP Pinhole camera with self-adaptive IR supplement
  • One-touch calling design for easier calls
  • Supports two door stations simultaneously in the intercom system
  • Convenient installation and easy operation

DS-KB2411T-IM_Four-Wire-Analog-Door-Station_Datasheet_20240305

  • Video parameters
  • Camera1/2.7″ CMOS
  • Resolution

    1920 × 1080

    Stream resolution: 960 × 576

  • FOVHorizontal: 66.2°，Vertical: 37.2°
  • Video Frame RatePAL: 25 fps
  • Audio parameters
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker
  • Device interfaces
  • Four-wire Interface1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)
  • I/O Output1 relay output
  • General
  • Power Supply12 VDC
  • Power ConsumptionMax. 5W
  • Working Temperature-10° C to + 55° C (14° F to 131° F)
  • Working Humidity10% to 90%
  • Dimensions (L x W x H)135.14 mm × 49.6 mm × 41.93 mm (5.32″ × 1.95″ × 1.65″)
  • MaterialAluminum alloy
