Operation system
Embedded Linux operation system
ROM
32 MB
RAM
128 MB
Processor
Embedded high performance processor
Display parameters
Screen size
7-inch
Operation method
Capacitive touch screen
Type
Colorful IPS
Resolution
1024*600
Video parameters
Lens
/
Resolution
/
FOV
/
Wide dynamic range (WDR)
/
Video compression standard
/
Focal length
/
Audio parameters
Audio input
1 built-in omnidirectional microphone
Audio compression standard
G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output
1 built-in loudspeaker
Audio compression bitrate
16、32、64 Kps
Audio quality
Noise suppression and echo cancellation
Volume adjustment
Adjustable
Capacity
Message capacity
TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity
200
Linked network camera capacity
16
Linked indoor extensions capacity
16
Linked doorphone capacity
/
Network parameters
Network protocol
TCP/IP, SIP, RTSP
Wi-Fi
WiFi 802.11b/g/n
Wireless network
1 RJ-45 10/100Mbps self-adaptive
Bluetooth
/
3G/4G
/
Zigbee
/
Device interfaces
Alarm input
8
Network interface
1 RJ-45 10/100 Mbps self-adaptive
TAMPER
/
RS-485
1
USB
/
TF card
Support TF card, up to 128 G
Alarm output
/
Lock control
4 relays, Max. 30 VDC 2 A
Power supply output
Max. 12 VDC 0.5 A
Debugging port
1
Relay
4
General
Button
1 physical button(s)
Installation

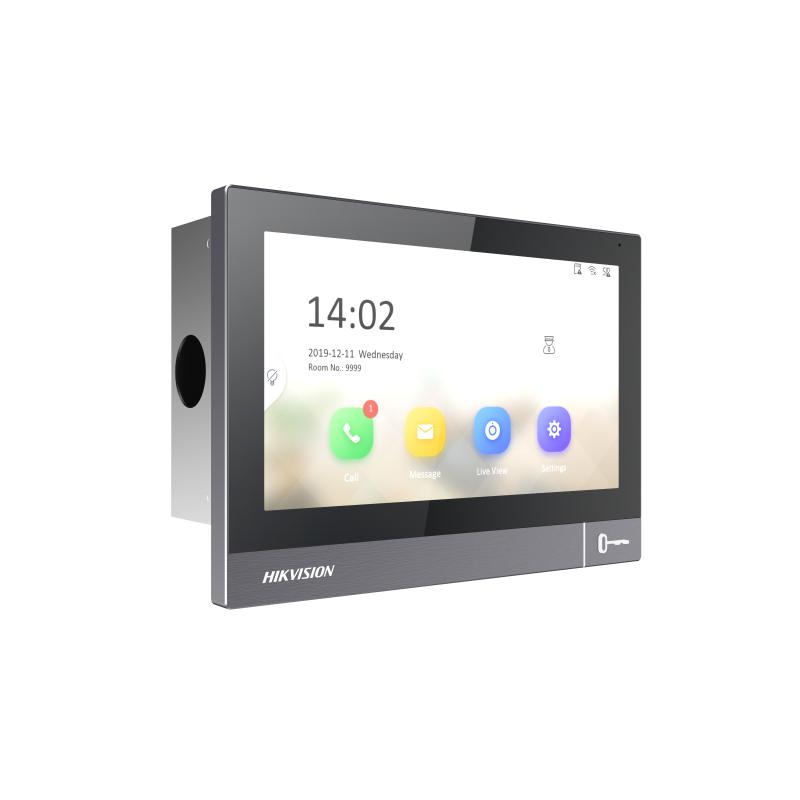

Flush mounting, surface mounting, table mounting
Indicator
/
Weight
Without package: 412.2 g (0.909 lb)
Protective level
/
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90% (no-condensing)
Dimension (W × H × D)
180.4 mm × 128.4 mm × 21.8 mm (7.10″ × 5.06″ × 0.86″)
Battery
/
Power supply
IEEE802.3at, Standard PoE,12 VDC, 1.5 A
Application environment
Indoor
Power consumption
≤ 12 W
Language
English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Chinese Traditional
Material
Die-cast integrated aluminum alloy casing
