Hardware Features
Standards and Protocols IEEE 802i, IEEE 802.3u, IEEE 802.3x

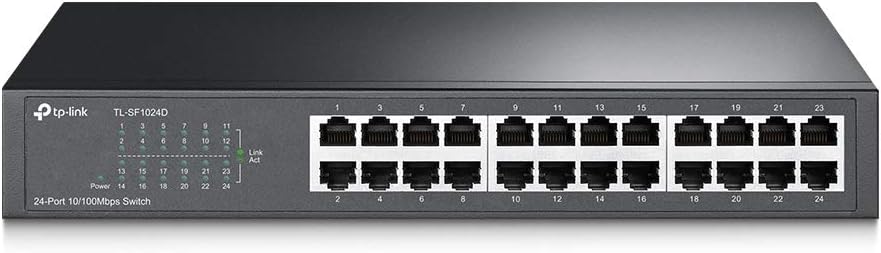

Interface 24 10/100Mbps RJ45 Ports
Auto Negotiation/Auto MDI/MDIX
Forwarding Mode Store-and-Forward
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

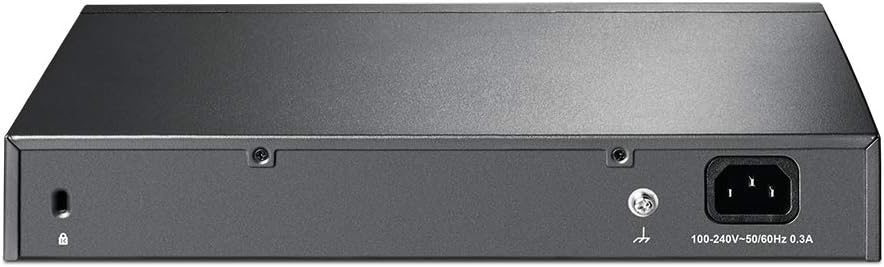

Power Supply 100-240VAC, 50/60Hz
Green Technology Yes
Dimensions 11.6*7.1*1.7 in. (294*180*44 mm)
Fanless Yes
Performance
Switching Capacity 4.8Gbps
Packet Forwarding Rate 3.57Mpps
MAC Address Table 8K
Jumbo Frame 2KB
Max Power Consumption 3.19W (220V/50Hz)
Max Heat Dissipation 10.88 BTU/h
Certification CE, FCC, RoHS
Environment
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Operating Humidity 10%~90%RH non-condensing
Storage Humidity 5%~90%RH non-condensing

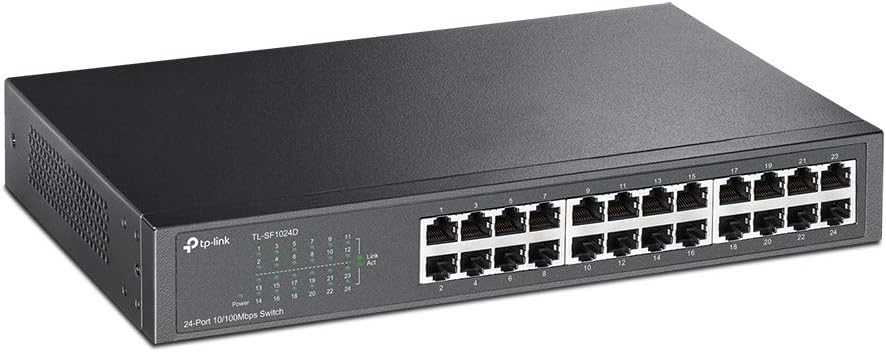

Ordering Information 24-Port 10/100Mbps Desktop Rackmount switch
